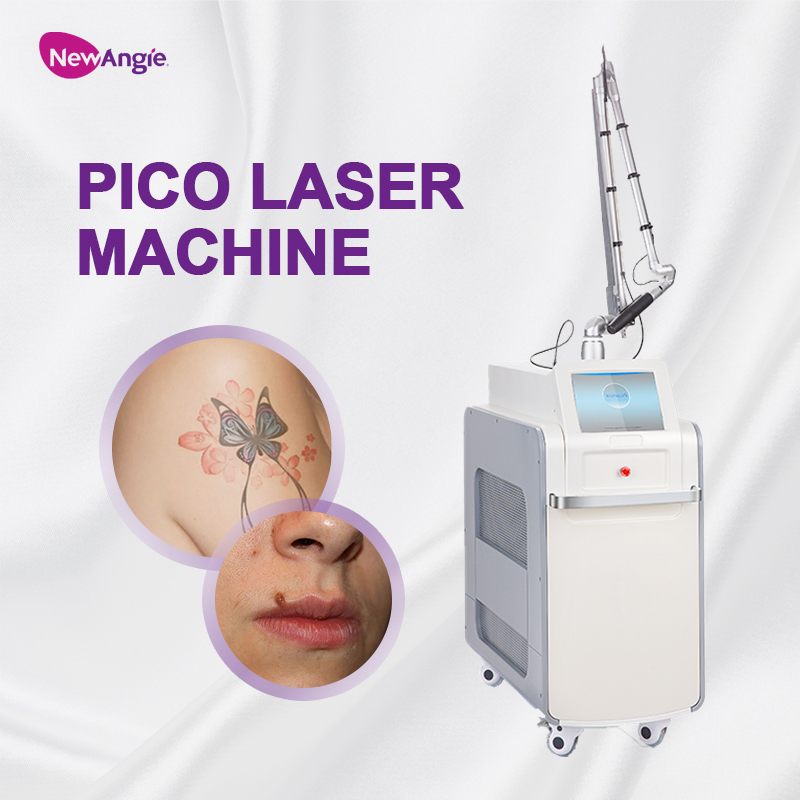

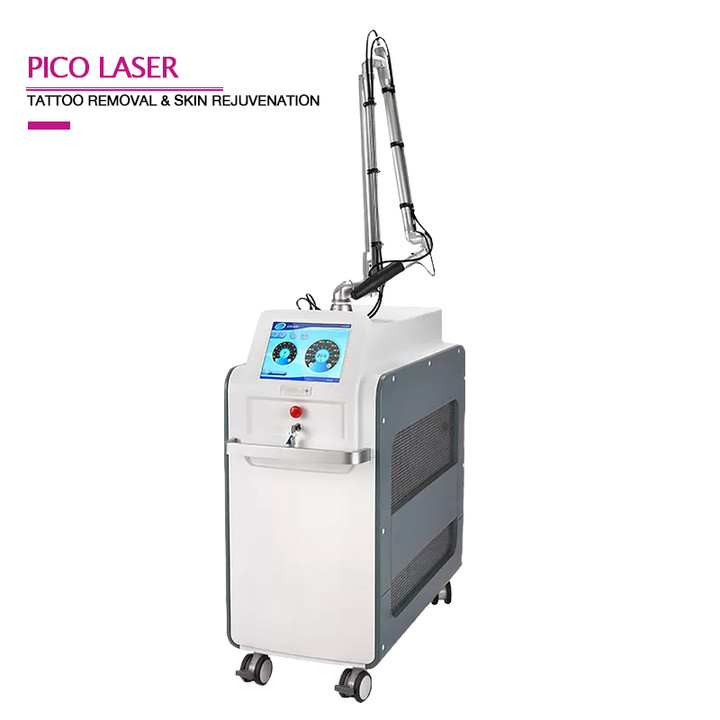

Newangie® Picosecond Laser Skin Rejuvenation Machine - BM33
Specifications
Specification | Picosecond laser |
Type | Seed Source MOPA Lamp-Pumped Picosecond Laser |
Wavelength | 1064 nm , 532 nm |
Pulse Width | 450 ps |
Pulse Energy | 350 mJ @1064 nm, 200 mJ @532 nm |
Basic Performance | Energy Control |
Max Peak Power | 0.78GW |
Frequency | 1-5HZ |
Spot size | 2-10mm |
Handle Pieces | ZOOM DOE 1064nm， DOE 532nm MLA Optional： 585nm DYE， 650nm DYE |
Light Output Method | Articulated Arm |
System Cooling Method | Internal Circulating Water-Air Heat Exchanger |
System Coolant | Distilled Water, 10L |
Protective Eyewear Requirements | 532 nm, 1064 nm, ≥OD4.0 |
Power Supply | 110-240 V, 50/60 Hz |
Aiming Beam/Wavelength | 650nm， < 5.0 mW |
Short pulse width (450ps)
Efficient destruction of the target pigment with minimal collateral thermal damage meeting the criteria of selective photothemmolysis
Top Hat Beam
Ensure that the energy is delivered efficiently to maximize effect while minimizing damage on surrounding tissue
Imported Laser Arm
south Korea imported 7 joint articulated arm ensure the highest energy
output minimum energy loss during laser transmission
Variety of Wavelengths
1064nm 532nm 755nm and Fractional Handpiece，comprehensive solve avariety of skin problems
Picosecond laser is widely used in the cosmetic field to treat skin problems， such as pigmentation， freckles， sun spots， age spots， melasma， acne scars， etc. It destroys pigment particles， making it easier to be absorbed and discharged by the skin， so as to achieve deep purification and skin whitening.
