Hebei Newangie Technology Co., Ltd. is one of the leading manufacturers and suppliers of microneedling machine rf in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale durable microneedling machine rf at competitive price from our factory. Also, OEM service is available.
Product Description
The MR16-6S RF Microneedling Machine is a professional vertical aesthetic device that combines RF microneedling and fractional RF technologies in one system. Designed for aesthetic clinics, beauty centers and professional equipment distributors, it offers multiple RF treatment options for different skin care applications.
The system features a vacuum-assisted RF microneedling handpiece, a fractional RF applicator and an ice hammer handpiece for cooling care. By integrating these applicators into one machine, the MR16-6S provides practitioners with different treatment approaches within a single workstation.
With its vertical cabinet design and multi-functional configuration, the MR16-6S is a practical equipment option for businesses looking to expand their professional RF skin treatment offerings. Newangie supplies this model to aesthetic equipment distributors, clinic owners and business partners seeking RF microneedling equipment for their markets.
0.2–7.0
mm
Adjustable Needle Depth
Dual
700 kHz / 2.2 MHz
RF Frequencies
0.1
mm
Depth Adjustment Increment
29
mmHg (Max.)
Vacuum Pressure
Key Features of the MR16-6S RF Microneedling Machine
Dual-Frequency & Dual-Mode RF
The MR16-6S supports two RF frequencies, 700 kHz and 2.2 MHz, with monopolar and bipolar operating modes. These different configurations provide flexible RF energy delivery options for professional treatment applications.
Wide Adjustable Needle Depth
With an adjustable needle depth range of 0.2–7.0 mm, the MR16-6S accommodates different treatment depth settings. The available depth depends on the selected needle cartridge and configuration.
Precision Stepper Motor Control
Our equipment utilizes an integrated stepper motor to control the advancement and retraction of the needle, ensuring smooth and controlled movement. With an adjustment increment of 0.1 mm, it allows for highly precise settings of the needle insertion depth.
Vacuum-Assisted Technology
Our microneedling RF machine features a built-in vacuum system capable of generating up to 29 mmHg of negative pressure, which helps maintain close contact between the treatment handpiece and the skin during the procedure.
Intelligent Consumable Management
The system records cartridge usage by treatment count and operating time. Its usage-control functions help monitor consumable status and manage cartridge replacement.
Constant-Power Control
The constant-power control system regulates RF output in response to changes in tissue impedance, helping maintain stable energy delivery during treatment.

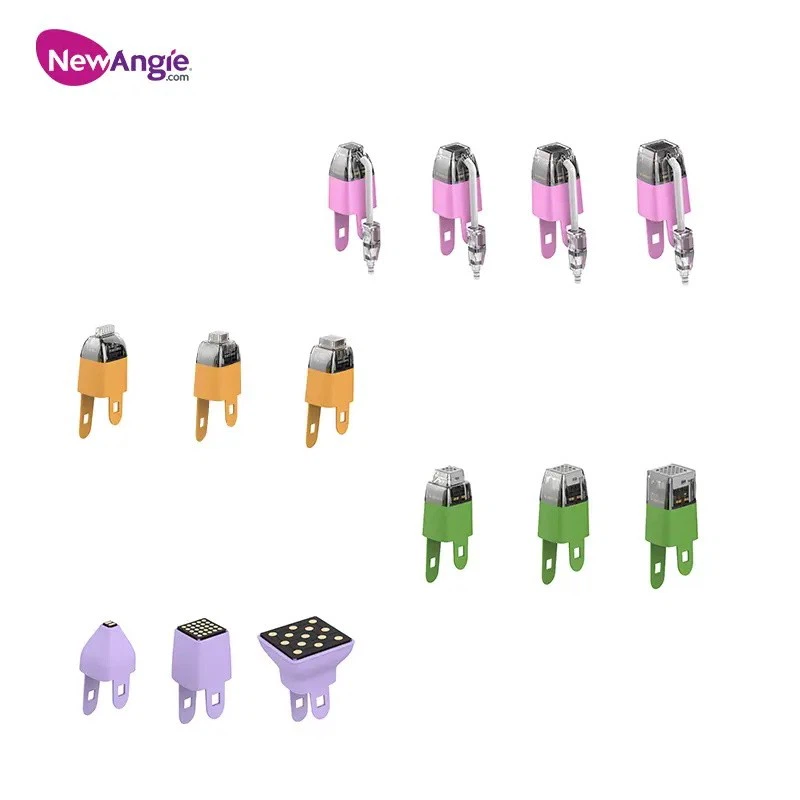

RF Microneedling Treatment Handpieces and Applicator Configuration
The MR16-6S RF Microneedling Machine integrates multiple treatment applicators into one system, combining microneedle RF, non-needle fractional RF and cooling functions. Each handpiece is designed for a different treatment approach, providing aesthetic practitioners with flexible options for professional skin care applications.
RF Microneedling Handpiece
The RF microneedling handpiece combines adjustable needle penetration with radiofrequency energy delivery. Its vacuum-assisted design helps maintain contact between the treatment tip and skin during operation.

Fractional RF Applicator
The Fractional RF applicator delivers radiofrequency energy through surface-contact electrodes without needle penetration. It provides an alternative RF treatment approach for professional skin care applications.

Ice Hammer Cooling Handpiece
The Ice Hammer handpiece provides cooling care to help soothe the skin following RF treatments. It serves as a complementary applicator to enhance treatment comfort.

Specifications of MR16-6S RF Microneedling Machine
|
|
Parameter |
Specification |
|
Model |
MR16-6S |
|
|
Machine Design |
Vertical |
|
|
Frequency |
700KHz+20%/2.2MHz+20% |
|
|
Voltage |
415Vpp/110Vrms +10% |
|
|
Power |
45W(Max) |
|
|
Vacuum Pressure |
29mmHg (Max) |
|
|
Vacuum Flow Rate |
3.6L/min (Max) |
|
|
Penetration Depth |
7.0mm (Max) |
|
|
Pressure |
1.5kg(Max) |
|
|
Consumable Lifetime |
1200 shots/24 hours |
|
|
Power Supply |
AC 100-240V |
Treatment Applications of the MR16-6S RF Microneedling Machine
Our MR16-6S RF microneedling device combines adjustable-depth RF microneedling technology with needle-free fractional RF technology, offering treatment solutions for both the face and body.
Facial Skin Rejuvenation
The MR16-6S can be used for different facial skin care applications, with treatment settings selected according to the treatment area and individual skin condition.
Enlarged Pores
Improve the appearance of enlarged pores and uneven skin texture.
Fine Lines and Wrinkles
Support skin rejuvenation treatments targeting the appearance of fine lines and wrinkles.
Acne Scar Appearance
Improve the appearance of acne-related skin texture irregularities.
Body Skin Rejuvenation and Tightening
Our MR16-6S can also be used for specific body skin care. Operators can select the appropriate treatment configuration based on the body area and the specific treatment requirements.
Abdominal Skin Laxity
Support aesthetic treatments targeting loose-looking abdominal skin.
Stretch Marks
Improve the appearance of stretch marks and uneven skin texture.
Body Scar Appearance Improvement
RF microneedling treatments can be used to improve the appearance of selected body scars and uneven skin texture.
RF Microneedling Before and After Results
See real before-and-after treatment cases performed using the MR16-6S RF Microneedling Machine. These comparison images provide a visual reference for how the equipment is used in professional aesthetic treatments and help potential buyers better understand its practical applications.
Interested in learning more about the MR16-6S or viewing additional treatment cases? Contact our team for more product information.

MR16-6S vs. MR16-8S – Choose Your Preferred Design
The MR16-6S and MR16-8S share the same RF technology, technical specifications and treatment functions. The only difference is their cabinet appearance. Both models provide the same treatment capabilities, allowing buyers to select their preferred design according to their market and clinic preferences.
Your RF Microneedling Machine Manufacturer

Professional Manufacturing Capability
Newangie specializes in the manufacturing of professional medical and aesthetic equipment. Our manufacturing processes cover product assembly and system integration, supporting the production of RF microneedling equipment for professional aesthetic applications.

Product Quality Inspection
Product inspection is an important part of our manufacturing process. Relevant checks are conducted to evaluate machine operation, handpiece connections, control functions and overall product condition before shipment.

Technical & After-Sales Support
Newangie provides product information, operation guidance and technical assistance to support customers throughout equipment use. Our team can also assist with technical inquiries and after-sales service arrangements according to the applicable service terms.
FAQ
Q: How can I get pricing information for RF microneedling machine?
A: You can contact us directly to get pricing details.
Q: Can I Get Product Training And Support For My Sales Team?
A: We offer comprehensive product training and ongoing support to empower your sales team with the knowledge they need to succeed.
Q: Do You Provide Marketing Materials To Help Promote The Products?
A: Yes, we offer marketing materials such as brochures, images, and videos to assist you in effectively promoting our products to your clients.
Q: What Is the Price of the MR16-6S RF Microneedling Machine?
A: The price depends on the machine configuration, order quantity and customization requirements. Contact Newangie to request a quotation based on your purchasing needs.
Q: What Is the Production Lead Time for Bulk Orders?
A: For our standard products, the production lead time is typically 7–15 days. We will confirm the estimated production and delivery schedule during the order negotiation process.
Q: What Warranty Is Provided for the MR16-6S?
A: We provide a one-year warranty, along with lifetime technical support.
Q: Can Newangie Support Long-Term Cooperation with Beauty Equipment Distributors?
A: Newangie welcomes cooperation inquiries from beauty equipment distributors, wholesalers and brand owners. Contact our team to discuss your target market, product requirements and potential long-term cooperation opportunities.
