Multi-Stage Cooling Designed for Professional Hair Removal
Newangie's Advanced Cooling Ice Laser Hair Removal Machine is designed for clinics, salons and aesthetic centers that need reliable cooling during professional laser hair removal treatments.
Instead of relying on a single cooling method, the system uses a multi-stage cooling architecture combining:
Compressor Cooling + TEC Cooling + Water Circulation + Fan-Assisted Heat Dissipation + Optional Air Cooling
The cooling system works together with sapphire contact cooling at the treatment handpiece to rapidly reduce contact temperature while managing heat generated inside the laser system.

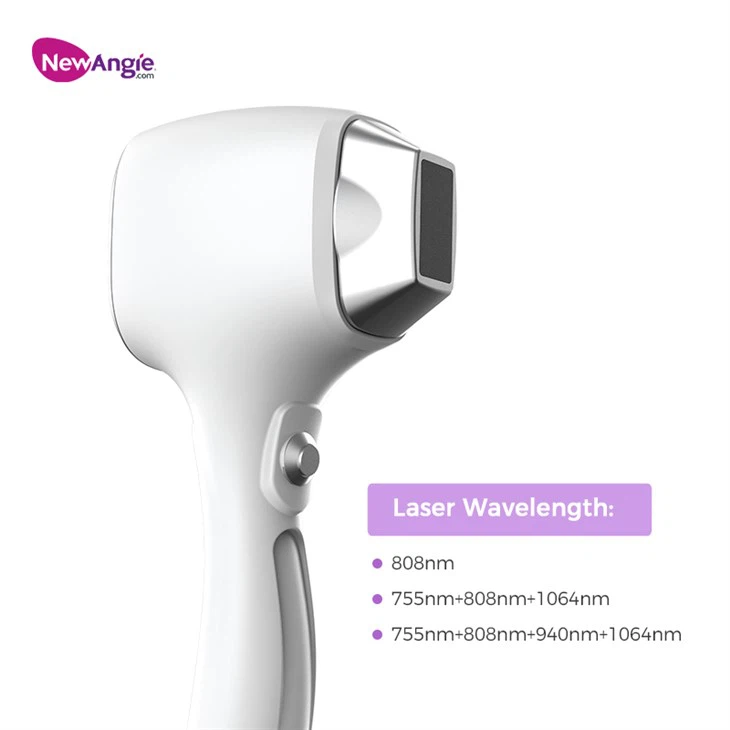

With selectable 808nm, 755+808+1064nm and 755+808+940+1064nm wavelength configurations, 800W or 1200W laser handpiece options, multiple spot sizes and adjustable treatment parameters, the platform is built for flexible professional hair removal applications.
Explore Newangie's most popular ice laser hair removal device
Why Cooling Matters in Professional Laser Hair Removal
A high-power laser system generates heat not only at the treatment surface but also within the laser module, handpiece, power system and internal circulation loop.
For this reason, professional cooling is not simply about making the treatment tip feel cold.
An effective cooling architecture needs to perform two different jobs:
Treatment-side cooling helps reduce the temperature of the handpiece contact surface for a more comfortable treatment experience.
System-side thermal management continuously transfers and dissipates heat generated by the laser and other internal components.
This machine combines these functions through a Multi-Stage Cooling System, providing a more comprehensive thermal management architecture than platforms relying on only one or two cooling mechanisms.

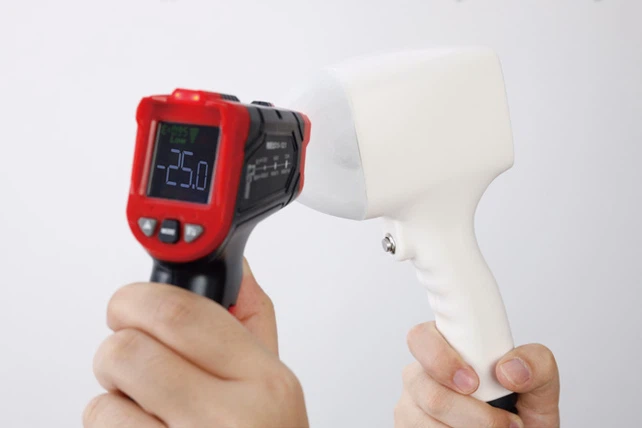

During the treatment, our advanced cooling ice laser hair removal machine working heads can quickly cool to -25°C within one minute, allowing users to complete hair removal in a comfortable state.

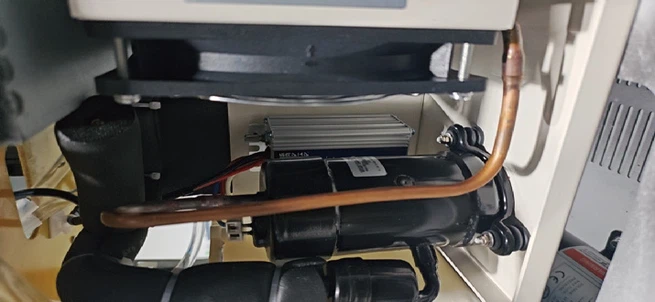

Compressor/TEC for Best Cooling and Continuous Work
Our ice laser hair removal machine uses a compressor/TEC to ensure continuous operation and provide optimal cooling temperature during treatment.
USA Coherent Laser Stacks
The working head of our diode ice laser hair removal uses the USA Coherent laser bar, which can ensure high-quality hair removal and is safe and reliable.

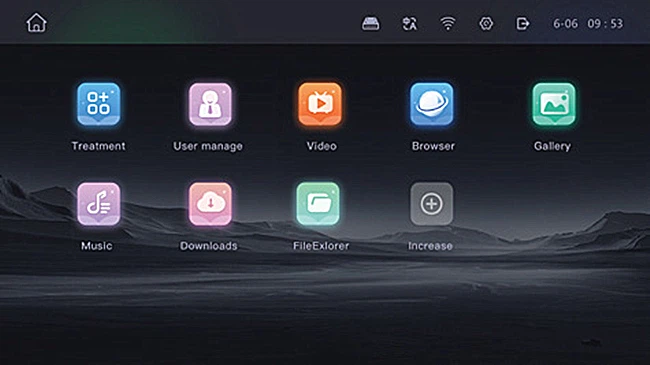

Smart Operation

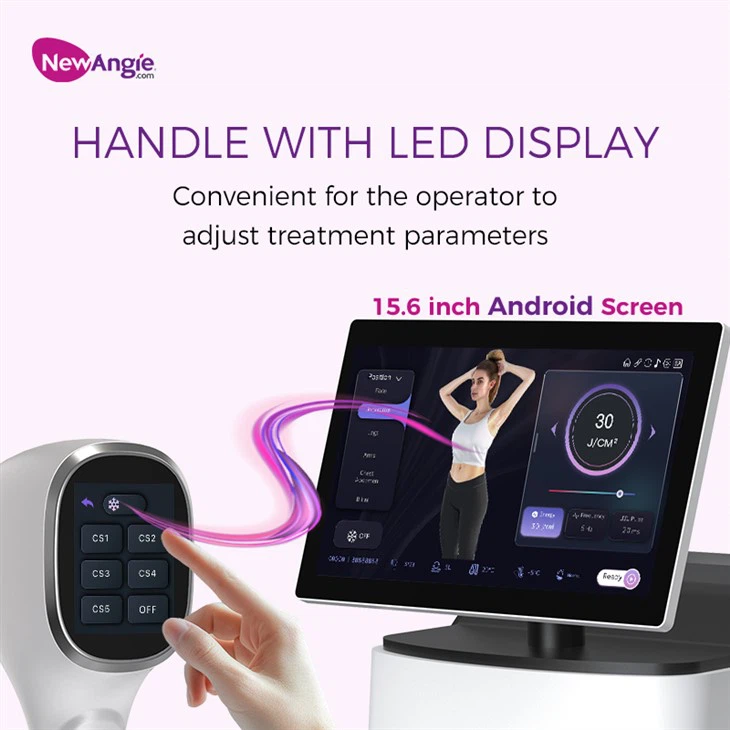

Our ice laser hair removal device features a smart touchscreen that allows for real-time adjustment of parameters and other functions based on the patient's hair removal progress during treatment, making it a very convenient design for operators.
Newangie professional ice laser hair removal devices
guarantee your comfort and safety during the hair removal process
Replaceable magnetic working head
Our ice laser hair removal device comes with a variety of magnetic working heads of different sizes, allowing for efficient and nearly painless hair removal on different parts of the body without the need to change the handle.
- 13x28mm working head has a large laser area and can effectively remove hair from the chest, back, and thighs.
- 13x24mm working head can effectively remove hair from the underarms, bikini line, and arms.
- 13x13mm working head can effectively remove hair from the upper lip and chin.
- 6mm working head can effectively remove hair from the ears, nose, eyebrows, and fingers.
In short, our Hair removal machine can remove hair from all parts of the body, and can effectively remove hair of various colors and textures, such as black, auburn, and brown hair.
Specification
|
Laser Wavelength |
808nm 755nm+808nm+1064nm 755nm+808nm+940nm+1064nm |
|
Laser handle power |
720W-1200W |
|
Laser Stack |
USA Coherent laser bar |
|
Spot size |
13*28mm 13*24mm 13*13mm φ6mm |
|
Laser Power supply |
2400W |
|
Energy Density |
87J/cm² |
|
Pulse Duration |
10-200ms adjustable |
|
Pulse Frequency |
1-10Hz |
|
Operation Interface |
15.6 screen |
|
Cooling system |
Water+Radiator+Fans+TEC |
|
Packing Size |
68*51*121cm |
|
Net Weight |
86KG |
|
Power Supply |
AC110-220V 50/60Hz |
The treatment effects you can get from this device
Our laser hair removal device can help you achieve long-term hair removal results,
typically reducing hair by up to 85% to 95% after one course of treatment.
Subsequent treatments will continue to reduce hair, and the new hair that grows back will be finer and softer.
To maintain the long-term results, you will need occasional maintenance treatments,
but this won't cost you much, as the effects of laser hair removal can last for months or even years.

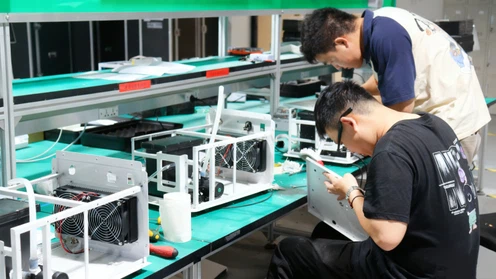

Newangie factory & equipment
the reliable medical and aesthetic equipment manufacturer
FAQ
Q: Is the laser energy parameter of ice cool laser hair removal adjustable?
A: Our ice laser hair removal machine supports pulse width (10 - 200ms) parameter adjustment, and has three laser wavelength adjustments (808nm; 755nm+808nm+1064nm; 755nm+808nm+940nm+1064nm) to meet different user needs.
Q: Does the ice cold laser hair removal treatment head support multi-part adaptation?
A: Our 3D trilogy ice laser hair removal treatment head can be adapted to multiple parts
13mmx28mm: Chest, Back, Thigh
13mmx24mm: Underarms, Bikini line, Arms
13x13mm: Upper lip, Chin
6mm: Ears, Nose, Eyebrows, Fingers
Q: What should be paid attention to in the daily maintenance of trilogy ice laser hair removal?
A: Daily maintenance of ice cube laser hair removal mainly includes keeping the equipment clean, especially the laser handle and treatment head, and gently wiping them with a clean soft cloth after use.
Q: Is the ice laser hair removal machine user interface easy to use?
A: The user interface of our ice diode laser hair removal machine is simple and intuitive, with large icons and clear menu layout, which can be quickly understood even by employees without complex technical backgrounds.
