Products Description
Our 12D HIFU device utilizes high-intensity focused ultrasound technology to precisely target the SMAS fascia layer deep within the skin, using thermal energy to stimulate collagen contraction and regeneration, achieving a firming and lifting effect. The energy can penetrate to varying depths, such as 3.0mm and 4.5mm, directly impacting the fascia without damaging the epidermis.
What Our HIFU Machines Can Do for You?
Deep Lifting
Acting on the SMAS fascia layer, it's equivalent to a non-invasive facelift, improving facial sagging, rough skin texture, and reshaping facial contours.
Mid-Level Firming
Activating collagen in the dermis, reducing fine lines (such as those around the eyes, around the mouth, and on the forehead), improving skin laxity, and enhancing skin texture.
Superficial Contouring
Targeting localized fat accumulation, such as double chins and baby fat, the treatment gently metabolizes fat through thermal stimulation, achieving a dual effect of "face slimming and firming."
Working Heads

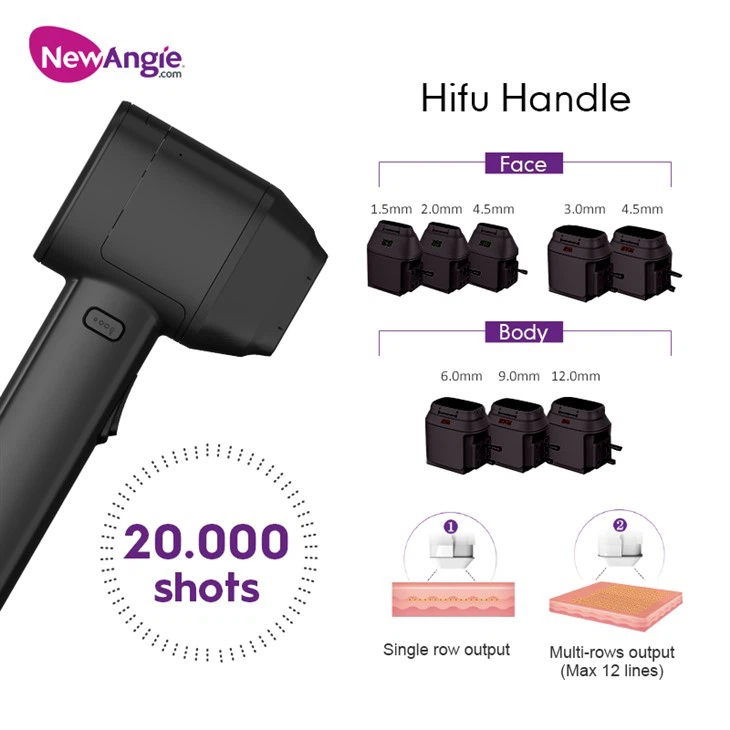

HIFU Handle
Single-row output for smaller parts:
S1.5, S2.0, S3.0 (S4.5 optional)
Multi-row for larger parts：
WD3.0, WD4.5, WD6.0, WD9.0, WD12.0 (WD13 optional)
WD4.5, WD6.0, WD9, and WD12 can be used for body fat reduction.
Each treatment head can fire 20,000 rounds. A facial treatment requires approximately 200-300 rounds, so one facial treatment head can perform 70-100 treatments.
Lipohifu Handle
Wx8.0mm Wx13mm
Each treatment head can fire 600 rounds, with each treatment requiring 9-12 rounds. Each round can target 576 points.
This is ideal for people with excess fat or large areas, allowing for larger, more densely packed thermal coagulation points.
DEP Handle
This is an effective transdermal drug delivery technology. The interaction between the positive and negative electrodes on the handpiece generates special electrical pulses, which stimulate cell contraction and open intercellular absorption channels.
The product is injected into the dermis through the intercellular spaces. Serum-based products can be introduced into the superficial layers of the dermis to promote absorption, improve skin pH, and provide antioxidant benefits.
(After HIFU treatment, the product can be introduced into the DEP layer.)
360° HIFU Handle
R1.5mm R3.0mm (R4.0mm optional)
Each treatment head emits 40,000 rounds, allowing for treatment of smaller facial areas such as the corners of the mouth, wings of the nose, and around the eyes.
Specification
|
Operation Interface |
15.6 screen |
|
Cartridge Frequency |
4-7 Mhz |
|
Energy |
0.1-3.0J |
|
Operate Mode |
Auto and manual |
|
Motor |
Japan motor |
|
Working Handles |
4 pieces |
|
Cartridges |
12 pieces totally |
|
Hifu Handle (single line) |
1.5mm 2.0mm 4.5mm |
|
Hifu Handle (multi lines) |
3.0mm 4.5mm 6.0mm 9.0mm 12.0mm |
|
Hif360 Handle |
1.5mm 3.0mm |
|
Lipohifu Handle |
8.0mm 13.0mm |
|
Packing Size |
68x57x118cm |
|
Net Weight |
60KG |
|
Power Supply |
AC 110-220V 50/60Hz |
Applications of Our HIFU Machines
This treatment primarily targets aging skin on the face and neck, stimulating collagen regeneration to achieve firming and lifting effects. Common treatment areas include:
- Face:
Forehead, apple cheeks, jawline, nasolabial folds, etc., to improve sagging skin and wrinkles.
- Neck:
Neck wrinkles and sagging neck skin, enhancing neck contours.
HD capacitive touch screen
Efficient and reliable performance
Easy and convenient operation
Our factory & Equipment
China's leading manufacturer of medical aesthetic equipment development and export
