Pico Laser vs. Q-Switched Laser: Technical Comparison, Clinical Efficacy, and Clinic Investment Guide (2026 Edition)
In the field of high-end medical aesthetics, addressing dermal pigmentation, complex multi-colored tattoos, and melasma requires an exceptional level of precision. For decades, nanosecond Q-switched Nd:YAG lasers have served as the industry standard. However, the advent of picosecond laser technology has revolutionized laser dermatology by shifting the primary mechanism of interaction from a "photothermal effect" to a "photomechanical effect."
For medical directors, operators of aesthetic clinics, and distributors investing in high-performance equipment, a thorough understanding of the differences between picosecond and Q-switched lasers-in terms of technology, clinical efficacy, and return on investment (ROI)-is essential.
What Are The Fundamental Differences Between Picosecond Lasers And Q-switched Lasers?

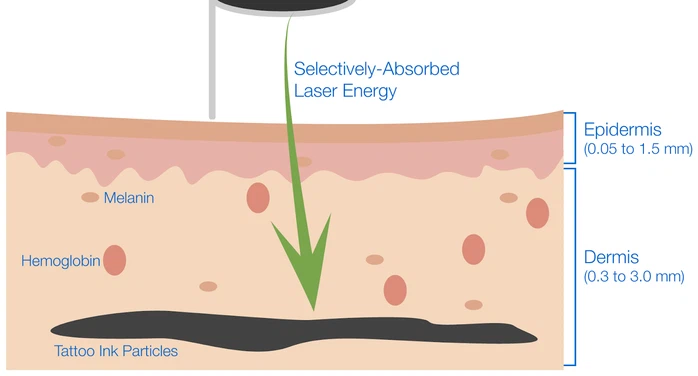

The core principle of laser tattoo removal is photomechanical action-using laser energy of a specific wavelength to break down tattoo pigment particles, which are then metabolized and eliminated by the human immune system. The fundamental difference between picosecond lasers and Q-switched lasers lies in the key parameter of pulse width, which directly determines how the energy acts on the pigment.
| Target Ink Color | 15-18kg | 15-18kg | 15-18kg | 15-18kg |
| Black, Dark Blue, Grey | 1050mm | 1050mm | 1050mm | 1050mm |
| Red, Orange, Violet | 3D colour industrial camera | 3D colour industrial camera | 3D colour industrial camera | 3D colour industrial camera |
| Green, Lime, Sky Blue | end force sensors | end force sensors | end force sensors | end force sensors |
| Melasma & Epidermal Pigment | highly sensitives six defrees of freedom electronic skin sensor | highly sensitives six defrees of freedom electronic skin sensor | highly sensitives six defrees of freedom electronic skin sensor | highly sensitives six defrees of freedom electronic skin sensor |
| White / Flesh-Tone | Non-contact body safety detection (optional) | Non-contact body safety detection (optional) | Non-contact body safety detection (optional) | Non-contact body safety detection (optional) |
| Carbon Laser Peel (Skin Rejuvenation) |
M8 4-pin-A-F | M8 4-pin-A-F | M8 4-pin-A-F | M8 4-pin-A-F |
| Technical Parameter | Picosecond Laser (Pico) | Q-Switched Laser (Nano) | Impact on Skin |
| Pulse Duration | 300ps - 900ps | 5ns - 20ns | 1000x shorter pulses reduce thermal diffusion |
| Primary Interaction | Photoacoustic (Mechanical) | Photothermal (Thermal) | Pico shatters ink without heating the skin |
| Pigment Particle Size | < 1μm (Dust-like) | 10μm - 50μm (Pebble-like) | Smaller particles clear 3x faster via lymphatics |
| Thermal Relaxation Time | Safely within limit (<100ns) | Close to limit (can exceed) | Pico minimizes PIH risk by ~60% |
| Clinical Recovery Cycle | 3-7 Days (Minimal Erythema) | 5-10 Days (Scabbing/Blistering) | Faster turnaround for patient social life |
| Machine Price Range | $10,000−$25,000 | $2,000−$10,000 | Higher upfront cost for Pico technology |
| Per-Session Revenue | $200−$1,000 | $100−$600 | Pico offers 2x higher session profitability |
| ROI Timeline | 8 - 14 Months | 4 - 8 Months | Pico yields faster long-term patient turnover |
Data Source: Anderson RR, Parrish JA. "Selective photothermolysis: precise microsurgery by selective absorption of pulsed radiation." Science, 1983.
Q-switched lasers: These have a pulse duration ranging from 5 to 20 nanoseconds-a timeframe that exceeds the "stress relaxation time" (typically less than 1 nanosecond) of melanin and ink particles. This results in a photothermal effect, causing heat to diffuse into the surrounding healthy tissue, which increases the risk of post-inflammatory hyperpigmentation (PIH), blistering, and epidermal crusting.
Picosecond lasers: These feature a pulse duration compressed to between 300 and 450 picoseconds (one-thousandth of a nanosecond), capable of generating an extremely high peak acoustic pressure. This high pressure triggers a photoacoustic shockwave that shatters pigment clusters into tiny, dust-like particles (less than 1 micron in size), all while causing minimal thermal diffusion.
In addition, some advanced picosecond lasers also have the dual advantages of "ultra-short pulse + wide spectrum". For example, they can cover multiple wavelengths such as 532nm, 1064nm, 785nm, etc., and can accurately match almost all common tattoo pigments such as black, blue, red, and green, solving the pain point of "light-colored pigments are difficult to remove" with Q-switched lasers.
NewangieDual Mode 350 Pico + 2ns Nano Technology
| Features | Picosecond laser | Q-switched laser |
| Pulse duration | Picoseconds | Nanoseconds |
| Energy delivery | Ultrashort, high-energy pulses | High-energy pulses |
| Target size reduction | Smaller pigment particles | Larger pigment particles |
Clinical Benchmarks for Professional Tattoos:
Clearance Rate (90%+): Picosecond lasers achieve targeted clearance in 3-5 sessions, whereas Q-switched lasers require 8-12 sessions for the same result.
Wavelength Advantage: The 755nm wavelength (common in high-end Pico) absorbs green and blue ink 80% more effectively than the 1064nm wavelength used in standard Q-switch systems.
Downtime: Clinical studies show redness subsides within 24 hours for Pico treatments, compared to 3-5 days for Q-switch, representing a 70% reduction in patient downtime.
Data Source: Kato H, et al. "Efficacy of Picosecond Laser for Tattoo Removal." Lasers in Surgery and Medicine, 2020.
Which Laser Should Be Chosen For Different Ink Colors?
Selecting the optimal laser technology depends primarily on the absorption characteristics of the target pigment and the dynamics of pulse interaction. We have compiled the following table based on treatment efficacy for various ink colors and clinical safety standards to provide professional guidance for selecting treatment protocols for your clinic.
| Target Chromophore / Ink Color | Optimal Wavelength | Pico Laser Efficacy | Q-Switch Efficacy | Clinical Recommendation |
| Black, Dark Blue, Grey | 1064 nm |
⭐⭐⭐⭐⭐ (Fast clearance) |
⭐⭐⭐⭐ (Effective) |
Deep penetrating; minimal melanin absorption in epidermis; safest for dark skin. |
| Red, Orange, Violet | 532 nm |
⭐⭐⭐⭐⭐ (Low blister risk) |
⭐⭐⭐ (High blister risk) |
Absorbed by superficial oxyhemoglobin and red ink. Pico minimizes epidermal burns. |
| Green, Lime, Sky Blue | 755 nm / 650 nm |
⭐⭐⭐⭐⭐ (Gold Standard) |
⭐ (Refractory/Poor) |
Traditional Q-switched 1064/532nm fails to clear green ink. Requires dedicated 755nm/650nm dye handpieces. |
| Melasma & Epidermal Pigment | 1064 nm / Fractional Mode |
⭐⭐⭐⭐⭐ (Safe toning) |
⭐⭐ (High rebound risk) |
Nanosecond heating triggers melanocyte hyperactivity. Pico photoacoustic toning stabilizes melasma. |
| White / Flesh-Tone | 755 nm | ⭐⭐ | ⊗ (Risk) | Q-Switched Laser can cause iron-based inks to darken irreversibly. Pico is safer for cosmetic tattoo removal (PMU). |
| Carbon Laser Peel (Skin Rejuvenation) |
1064 nm + Carbon Gel |
⭐⭐⭐⭐ (Deep pores) |
⭐⭐⭐⭐⭐ (Industry Standard) |
Q-switch effectively vaporizes carbon particles for instant pore tightening and sebum reduction. |
The Comprehensive Gap From "Treatment Efficiency" To "Recovery Experience"
These differences in technical principles ultimately manifest themselves in clinical treatment outcomes. Whether it's the number of treatments, recovery period, or the risk of complications, the two laser technologies exhibit clear disparities, directly impacting the consumer's treatment experience and ultimate satisfaction.
Treatment efficiency
Picosecond lasers offer a particularly significant advantage in treatment efficiency.
Because they break pigment particles into smaller pieces and are metabolized more quickly by the human body, picosecond lasers typically require 30%-50% fewer treatments than Q-switched lasers for the same tattoo area.
For example, a 5cm diameter black tattoo might require 8-12 treatments with Q-switched lasers to achieve near-complete removal, while picosecond lasers can achieve similar results in just 4-6. The difference is even more pronounced for lighter-colored tattoos like red and yellow. Due to wavelength mismatch, Q-switched lasers can leave noticeable pigment residue even after 10 treatments. However, picosecond lasers, leveraging their multi-wavelength advantages, achieve significant removal in just 5-8 treatments.
A landmark study published in JAMA Dermatology confirmed that picosecond pulses are significantly more efficient than nanosecond pulses in clearing ink at the same 1064-nm wavelength, providing the first controlled evidence of the "photoacoustic" advantage.
In a randomized, single-blind clinical trial (published on ResearchGate), researchers found that after only four sessions, 75% of tattoos treated with picosecond lasers achieved significant clearance, compared to 14% in the Q-switched group, while also demonstrating a superior safety profile for skin texture.
Postoperative recovery
In terms of postoperative recovery, the picosecond laser's cooling properties are fully demonstrated.
🔹After Q-switched laser treatment, the skin may show obvious redness and swelling due to thermal damage, which usually takes 3-5 days to subside. Some people will also form thin scabs, which take 7-10 days to fall off. During this period, you need to strictly protect against the sun, moisturize, and avoid infection.
🔹After picosecond laser treatment, the redness and swelling are mild, and for most people, they can subside within 24 hours. Scabbing rarely occurs, and the recovery period is shortened to 3-5 days, which greatly reduces the impact on daily life.
| Comparison Dimensions | Picosecond laser | Q-switched laser |
| Effects |
Crushing pigment particles into smaller particles allows for faster metabolism. |
The particles that are broken down are relatively large. |
| Postoperative Response |
Redness and swelling are mild, most people experience subsidence within 24 hours. Scabbing is rare. |
Significant redness and swelling may occur, which usually subsides within 3-5 days. Some people may develop a thin scab. |
| Recovery Period | 3-5 days | The scab may fall off within 7-10 days. |
| Postoperative Care |
Sunscreen and moisturizing are required, but the risk is low due to minimal damage. |
Strict sun protection and moisturizing are required to avoid infection. |
Clinical Treatment Course: Picosecond Laser vs. Q-Switched Laser
| Phase / Protocol | Picosecond Laser Course | Q-Switched Laser Course | Impact on Patient Journey |
| Sessions for Clearance | 3 - 6 Sessions | 8 - 12 Sessions | Pico reduces total office visits by ~50% |
| Interval Between Sessions | 4 - 6 Weeks | 6 - 8 Weeks | Pico allows faster healing, enabling shorter gaps |
| Total Time to Results | 4 - 8 Months | 12 - 18 Months | Pico significantly shortens the time-to-clearance |
| Typical Session Duration | 5 - 15 Minutes | 15 - 30 Minutes | Pico's high repetition rate speeds up procedures |
| Post-Treatment Erythema | Resolves in 12 - 24 Hours | Resolves in 3 - 5 Days | Pico offers a "lunchtime" recovery experience |
| Success Rate (Refractory) | ⋆⋆⋆ (High) | ⋆ (Low) | Picosecond laser can clear ink that stopped responding to Q-Switched Laser. |
How To Choose Between Picosecond Laser Technology And Q-switched Laser Technology?
No optimal solution, Only adaptive solutions
While picosecond lasers offer superior performance in most areas, they are not suitable for all situations. By considering differences in tattoo type, skin condition, and treatment needs, we can see that each laser has its own specific application scenarios. Blindly pursuing "high-end technology" can lead to poor results or even wasteful costs.
Q-switched lasers are suitable for: low-cost, simple tattoos
For example, for amateur tattoos with small areas, single colors (black or blue only), and shallow pigmentation (such as those done in street shops), Q-switched laser treatments cost only 60%-70% of picosecond lasers.
Furthermore, multiple treatments can achieve good results, making it suitable for those with limited budgets and a low downtime requirement.
Furthermore, for those with very dark skin (Fitzpatrick skin types IV-VI), some early picosecond lasers may pose a risk of hypopigmentation due to energy control issues. In these cases, experienced physicians may opt for Q-switched lasers, lowering the energy level and extending the treatment interval to strike a balance between safety and effectiveness.
Recent clinical evidence (PMID: 33594939) demonstrates that modern 1064-nm picosecond lasers are safe and effective for Fitzpatrick IV-VI skin types. The ultra-short pulse duration limits heat diffusion to surrounding tissue, specifically reducing the risk of long-term hypopigmentation often associated with older nanosecond systems.
Picosecond laser application scenarios: "complex and demanding"
For professional tattoos, large tattoos, or difficult tattoos (such as red, yellow, or fluorescent tattoos), the picosecond laser's multi-wavelength advantages and efficient fragmentation capabilities can significantly shorten treatment cycles and avoid the cumulative damage to the skin caused by repeated treatments.
For tattoos on exposed areas such as the face, neck, and hands, the picosecond laser's rapid recovery and low scarring risk meet consumers' needs for tattoos that do not affect their daily lives and social interactions.
For those who have previously undergone Q-switched laser treatments but have not achieved satisfactory results (such as residual pigmentation or hyperpigmentation), picosecond laser can serve as a "remedial solution," removing residual pigment and improving skin condition through more precise energy control.
The compatibility of the two lasers is also closely related to the physician's experience. The effectiveness of Q-switched lasers relies on the physician's precise control of energy density and treatment intervals, while picosecond lasers require the physician to adjust the pulse pattern and wavelength based on the tattoo pigment type and skin thickness. Blindly operating these lasers can lead to overtreatment or undertreatment.
Therefore, before choosing a laser, assessing the physician's clinical experience is more important than simply comparing technical parameters.
Newangie's Most Popular Related Technology Products
350ps Professional-Grade Picosecond Laser System (BMPS4)
🔹Technology: Features TruePico technology-standard 1064nm & 532nm wavelengths with optional 585nm and 650nm dye handpieces-covering the full spectrum of pigment colors, from superficial spots to deep-seated tattoos.
🔹Pulse Duration: 350 picoseconds-a true picosecond pulse width that generates powerful photoacoustic pressure to shatter pigment without causing thermal damage.
🔹Energy: 1064nm: 500mJ; 532nm: 250mJ; peak power up to 1.43GW-ensuring a high clearance rate for stubborn pigmentation.
🔹Spot Size: Continuously adjustable from 2–10mm; equipped with high-uniformity beam distribution technology to ensure consistent energy delivery during treatment.
🔹Operating Modes: Standard ZOOM handpiece; optional DOE and FLA handpieces available-suitable for skin remodeling and rejuvenation.
🔹Frequency: 1–10Hz-high-speed pulse frequency that significantly reduces treatment time for large-area tattoos.
🔹Ideal For: High-end medical aesthetic centers, clinics, and spas seeking "gold standard" treatment results; specialized in multi-colored tattoo removal and pigmentation treatment.
🔹Certifications: CE, RoHS, MSDS.
Integrated Picosecond & Nanosecond Dual-Pulse System (BMPS7)
🔹Technology: Proprietary Dual Mode 350ps Pico + 2ns Nano technology-perfectly combining the nanosecond mode's ability to shatter pigment with the picosecond mode's ability to pulverize it into fine dust.
🔹Pulse Duration: Dual-pulse mode; intelligently switches based on tattoo depth and particle size for more thorough clearance.
🔹Energy: 1064nm: 500mJ; 532nm: 300mJ (Pico) / 250mJ (Nano)-offering a wide range of energy density adjustments.
🔹Spot Size: Adjustable 2–10 mm spot size; equipped with a Korean-made 7-joint articulated arm ensuring energy transmission loss of less than 10%.
🔹Operating Mode: Dual-mode switching-initial treatments use nanosecond pulses to shatter large particles, followed by picosecond pulses to pulverize residual pigment into dust, achieving 100% ink removal.
🔹Frequency: 1–10 Hz-high-frequency output combined with a flat-top beam profile prevents skin damage caused by "hot spots."
🔹Ideal For: Medical professionals treating complex and stubborn tattoos; high-end clinics requiring both deep pigment clearance and rapid post-treatment recovery.
🔹Certifications: CE, RoHS, MSDS.
450ps Classic Picosecond Laser System (BM33)
🔹Technology: High-stability picosecond laser technology-targeting core wavelengths of 1064nm and 532nm-focused on non-invasive pigment fragmentation.
🔹Pulse Duration: 450 picoseconds-an optimized pulse width balancing clearance efficiency with cost, making it a reliable choice for long-term clinic operations.
🔹Energy: 1064nm: 350mJ; 532nm: 200mJ; Peak Power: 0.78GW-maintains exceptional output energy consistency.
🔹Spot Size: Adjustable 2–10mm; utilizes high-quality optics to ensure uniform energy distribution from the center to the edge of the spot.
🔹Operating Modes: Supports versatile handpieces-including ZOOM, DOE (1064/532nm), and FLA (honeycomb lens)-to meet skin rejuvenation and scar repair needs.
🔹Frequency: 1–5Hz-stable pulse output, suitable for precision procedures and operators new to picosecond technology.
🔹Ideal For: Aesthetic centers seeking cost-effective picosecond equipment that prioritizes stability and low maintenance costs; primarily targets black/blue tattoos and the removal of common pigmented spots.
🔹Certifications: CE, RoHS, MSDS.
From Q-switched laser to picosecond laser, the updates and iterations of laser tattoo removal technology are not "complete replacement" but "upgrade of precision". From "single wavelength" to "multi-wavelength coverage", each technological breakthrough aims to better balance the "effect, safety and experience" of treatment.
When choosing a tattoo removal plan, do not blindly follow the "latest technology", but instead consider your own tattoo situation (color, area, depth), skin condition (skin color, sensitivity) and needs (budget, recovery time), and choose the "most suitable" plan under the guidance of a professional doctor; as for relevant practitioners, they must understand the core differences between the two lasers and master the application logic in different scenarios, so as to provide patients with personalized treatment plans and truly achieve the goal of "technology serves results."
FAQ
Q: Why do Picosecond (Pico) devices offer a higher ROI (Return on Investment) despite their high initial cost?
A: Picosecond treatments typically require only 3–6 sessions (compared to 10+ for nanosecond lasers), while commanding a 50%–100% higher price per session. The shorter treatment course allows for a faster patient turnover rate and higher referral rates, with the initial investment typically recovered within 8–14 months.
Q: Which technology is safer for treating darker skin tones (Fitzpatrick types IV–VI)?
A: Picosecond technology is superior. Its ultra-short pulse duration (350 picoseconds) minimizes thermal diffusion, relying primarily on physical shockwaves to shatter pigment. This significantly reduces the risk of post-inflammatory hyperpigmentation (PIH) and thermal burns in patients with darker skin.
Q: How does the choice of technology affect the removal of multi-colored tattoos (especially green and red ones)?
A: Traditional nanosecond lasers are highly ineffective at absorbing green ink, often making complete removal impossible. Picosecond lasers (utilizing 532nm/755nm wavelengths) are the "gold standard" for multi-colored tattoo removal, as they can pulverize stubborn pigment into tiny, dust-like particles.
Q: How do differences in post-treatment "downtime" impact a clinic?
A: Following a picosecond treatment, redness and swelling typically subside within 24 hours, with virtually no scabbing. In contrast, nanosecond laser treatments often require a 3–7 day recovery period and are more likely to cause scabbing. The convenience of picosecond treatments-often described as "lunch-break" procedures-significantly boosts patient satisfaction and helps build a clinic's professional reputation.
Q: What is the primary difference in pain levels between Pico and Q-switched lasers?
A: Patients describe Q-switched laser treatment as akin to a continuous rubber band snap accompanied by intense burning heat. Picosecond lasers deliver energy so rapidly that thermal diffusion to sensory nerve endings is minimized, making the sensation feel more like minor surface tingling. Topical numbing cream is still recommended for large-area tattoos.
Q: Can a Q-switched laser machine still deliver a viable ROI for new clinics?
A: Absolutely. For entry-level clinics or tattoo parlors operating on a limited budget, a professional Q-switched Nd:YAG laser offers an accessible initial investment 2,500–8,000) that can pay for itself within 4–8 months through basic black/blue tattoo removal and popular Carbon Laser Peels.
Q: How many sessions are required for complete tattoo clearance?
A: Amateur or single-color dark tattoos typically require 3–5 sessions with a Picosecond laser versus 8–12 sessions with a Q-switched laser. Professional, dense, or multi-colored tattoos may require 5–8 picosecond sessions spaced 4–6 weeks apart.
