Next-Generation Q-Switched Nd:YAG Laser
An Exceptional Solution for Deep Skin Cleansing and Precise Pigmentation Removal
Experience a skin-rejuvenation revolution powered by cutting-edge Nd:YAG laser technology. Utilizing a 1064nm near-infrared wavelength, our system penetrates beyond the epidermis to reach the dermis, precisely targeting and shattering deep-seated pigment and vascular lesions while leaving surrounding healthy tissue intact. Beyond its powerful performance, the system sets a benchmark in dermatological treatment thanks to its outstanding safety profile and broad suitability for all skin types.
1064nm & 532nm Dual Wavelength Safe for All Skin Types Non-Invasive Rejuvenation
Why Newangie's Q-Switch Nd:YAG is Your Best Investment?
Dual Wavelength Precision
1064nm penetrates deep to target dermal pigments and stimulates collagen.532nm targets epidermal pigments (red/brown tattoos, freckles, sun spots).
Ultra-Short Pulse Technology
Delivers high-peak power in nanoseconds to shatter pigment into tiny particles easily absorbed by the body.
Flat-Top Beam Profile
Our advanced Flat-top beam technology ensures a highly uniform energy distribution across the spot, eliminating "hot spots." This maximizes pigment clearance while significantly minimizing post-treatment inflammation and thermal damage.
Smart Active Q-Switched System
This device features an active Q-switching control system capable of generating exceptionally high peak power and a constant 8ns pulse duration. This instantaneous burst of energy precisely shatters deep-seated melanin without causing burns to surrounding healthy tissue.

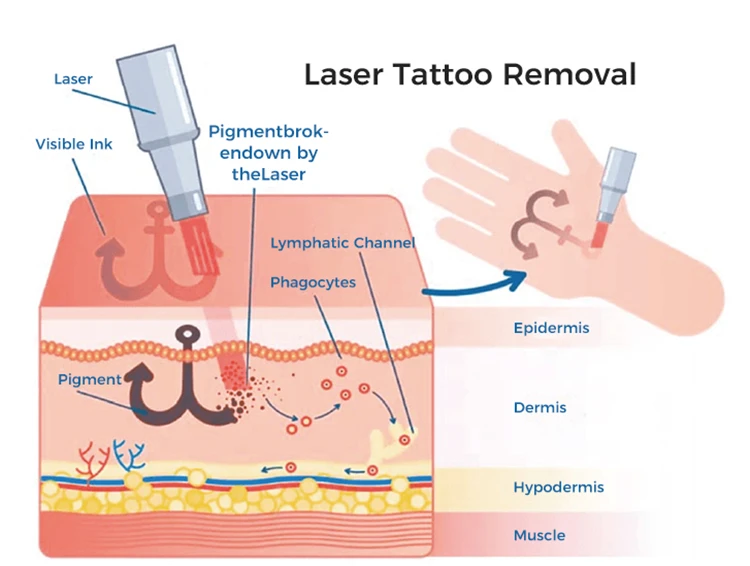

Based on the principle of selective photothermolysis, the Nd:YAG laser delivers high-energy pulsed light to the target area; the laser energy is strongly absorbed by melanin, triggering an intense "photoacoustic effect." Pigment particles are shattered into micron-sized fragments, which are subsequently eliminated naturally through the lymphatic system.
This technology offers a non-invasive solution for various aesthetic concerns, requiring no downtime while delivering optimal treatment results.
Clinically proven to achieve over 90% visual clearance for Ota Nevus and multi-color tattoos (black, blue, red, brown) within 3-5 sessions, making it the preferred profit-generating platform for aesthetic clinics.
Advantages of Q Switch Nd Yag Laser Machine
Stable and durable handle
Equipped with a patented ceramic-cased handpiece that balances lightweight design with durability; it minimizes operator fatigue during prolonged use while offering superior heat dissipation.
Precision treatment
Our laser device utilizes Q-switched mode with a pulse width of 8 nanoseconds, which allows for highly precise treatment procedures.
Powerful energy output
Our Nd:Yag Laser is equipped with a special high-grade YAG crystal that can deliver up to 200mJ single pulse energy and up to 1000mJ multi-pulse energy.
High-quality components
Our Q switch nd yag laser machine uses a high-quality xenon lamp and a powerful pump system for powerful, continuous operation.
Triple Cooling System:Ensuring Patient Safety
Stable laser operation relies on efficient heat dissipation. Newangie's Q-switched laser system employs a combination of water cooling, air cooling, and semiconductor cooling. This ensures the laser cavity maintains a constant temperature during extended, high-intensity use, preventing overheating that could lead to energy degradation or equipment damage.
The cooling system also directly impacts treatment comfort. Epidermal cooling effectively reduces the sensation of heat during the procedure, minimizes the risk of post-treatment redness or swelling, and enhances the overall client experience.
Control System: 15.6-inch Smart Touchscreen
Equipped with a 15.6-inch high-definition, true-color touchscreen, the system features an intuitive and user-friendly interface. Operators can easily adjust parameters such as energy density, frequency, and pulse width, allowing for quick proficiency without the need for complex training.
Laser Cavity: Single-Lamp, Dual-Rod Structure
The equipment utilizes a single-lamp, dual-rod cavity design. This configuration ensures stable energy output while effectively extending the service life of core optical components.
High-Grade YAG Crystal
Serving as the laser medium, the Nd:YAG (neodymium-doped yttrium aluminum garnet) crystal converts pump light into 1064 nm laser radiation, ensuring high energy conversion efficiency and superior beam quality.
High-Quality Xenon Lamp Pump
The xenon lamp acts as the pump source, providing continuous and stable excitation energy to the crystal. Coupled with a high-efficiency pumping system, the unit enables long-term, stable, and continuous operation.
Specification
| Laser Type | Single light double rod |
| Laser Wavelength | 1064nm,532nm,1320nm |
| Working Frequency | 1-10Hz (Adjustable) |
| Pulse Width | 8ns |
| Operation Interface | 15.6 screen |
| Machine Power | 500W |
| Energy Density | 50-1000m/cm² |
| Multi-pulse Energy | 3.2J (500W dual capacitor) |
| Spot Size | 6mm |
| Power Supply | AC 110-220V 5A 50Hz |
Application of Newangie Q Switch Nd Yag Laser Machine
One device can easily deal with multiple skin problems：
Nose: Our laser equipment can remove blackheads on the nose and make it smooth.
Tattoo: Our equipment can also remove some tattoos on the body without causing any damage to the skin.
Spot removal: Our equipment can also effectively remove some spots on the face.
Remove tattooed eyeliner and eyebrows: For tattooed eyebrows and eyeliner, they can also be removed cleanly with our Q switch nd yag laser machine.
Skin whitening: If your skin is dull, our equipment can make your skin whiter.
Shrink pores: For customers with large facial pores who want to shrink pores and make their skin delicate, our equipment can also meet their needs.
A prospective interventional study involving 12 patients with blue-black tattoos demonstrated that, following three treatment sessions with a 1064-nm Q-switched Nd:YAG laser (fluence: 1.8–9 J/cm²), the mean improvement rate reached 64.1% (physician assessment) and 54.2% (patient assessment). The study indicates that the 1064-nm Q-switched Nd:YAG laser is safe and effective for treating blue-black tattoos in patients with pigmented skin.
Real Treatment Before And After
Newangie-Your trustworthy medical aesthetic partner
Certifications: CE, ISO 13485, FDA (if applicable). Mention compliance with international standards.
Training Support: Comprehensive user manual and online video training provided.
Warranty: 1 Years Warranty for the main machine, lifetime free technical support.
After-Sales: 24/7 online technical support and fast spare parts delivery.
FAQ
Q: What does the 8ns pulse width of Newangie's Q-switched laser equipment signify?
A: A shorter pulse width results in higher peak power and a stronger photo-acoustic (shattering) effect. The 8ns pulse width represents the industry standard; it effectively shatters pigment particles while minimizing the zone of thermal damage.
Q: Is this device suitable for dark skin tones?
A: Yes, it is. The 1064nm wavelength is minimally absorbed by epidermal melanin, allowing energy to penetrate the dermis and target deep-seated pigment; it is the preferred wavelength for treating pigmentation in dark skin.
Q: What is the 1320nm wavelength used for?
A: The 1320nm wavelength is used for carbon-assisted skin rejuvenation (often called the "Black Doll" or "Carbon Peel" treatment). It provides deep cleansing, pore tightening, oil control, and skin brightening, making it a popular service in beauty salons.
Q: Can results be seen after a single treatment?
A: For epidermal pigmentation and superficial tattoos, significant fading is visible after just one session. Deep-seated pigment and complex tattoos typically require 3–6 treatments, spaced 4–6 weeks apart.
