Diode Laser Hair Removal Machine

Diode Laser Hair Removal Machine

Details
Fast Cooling
High Power
Totally painless
Safe and Comfortable

Model: DL109

Share to
Send Inquiry
Description
Technical Parameters





Permanent Hair Removal Devices: Highly Effective, Comfortable, and Long-Lasting



The Newangie Diode Laser Hair Removal Machine is a high-end device designed specifically for aesthetic clinics, spas, and professional practitioners. Combining cutting-edge optical technology with a user-friendly design, it offers a safe, rapid, and long-lasting full-body hair removal solution. As an experienced manufacturer of diode laser hair removal systems, Newangie is dedicated to delivering a medical-grade hair removal experience to every user.



✅Factory Direct
✅Suitable for All Skin Types
✅Safe and Painless









How does it effectively remove hair?

Our diode laser hair removal machine uses the principle of selective photothermolysis (SPTL) to target specific pigments in the skin, usually melanin. The laser destroys the pigment by selectively heating it without damaging surrounding tissue. This precise targeting ensures long-lasting hair removal for a variety of skin types, providing users with a comfortable and effective hair removal solution.

How does it effectively remove hair











Why Newangie Diode Laser Hair Removal Machine is Popular for Medical & Aesthetic Salons?









Advanced Multiple Wavelength Technology for All Skin Types





Say goodbye to hair removal limitations! The Newangie Medical Grade laser hair removal device offers a choice of multiple laser wavelength combinations, including 755nm, 808nm, 940nm, and 1064nm, safely and effectively addressing various skin types from light to dark, making it an ideal diode laser machine for clinics in South Africa and other regions with diverse skin tones.



Regardless of your clients' skin type, they can enjoy a comfortable and damage-free hair removal experience.

product-706-469







product-706-472

High-Power 3000W Diode Laser: Fast & Permanent Epilation Results





Delivers a robust power output of 1800W to 3000W, it significantly enhances hair removal efficiency and reduces treatment time. Its crystal-free design makes the handpiece lighter and easier to handle.



The light beam emitted by our hair removal machine penetrates deeper and has higher energy density, which can instantly target the hair follicles, bringing users a more comfortable hair removal experience.











Revolutionary FAC Technology: Maximizing Energy Density and Pulse Accuracy





Our diode laser hair removal system utilizes advanced optical technology from the US-based brand LIMO, incorporating Fast Axis Collimation (FAC) and micro-optics. This allows the beam emitted from the handpiece to be focused over a short distance, achieving an energy density of up to 38 J/cm². The result is a uniform beam with concentrated energy that targets the hair follicle roots directly, ensuring more thorough hair removal.



Its high energy density and efficient beam make it a preferred laser hair removal machine in Dubai's competitive aesthetic clinics.

1ecac8f0c07cd44a6faad160f3d03e9e


















Highlights of Newangie's Diode Laser Hair Removal Machine



We are committed to continuous innovation and upgrading of product technology, keeping up with market trends,

while ensuring the quality and performance of our instruments to provide customers with safe and satisfactory cosmetic treatment solutions.

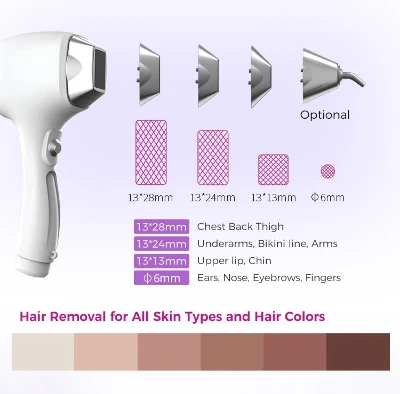

Versatile Treatment : 4 Precision-Engineered Spot Sizes for Full-Body Clinical Excellence



Newangie's latest semiconductor laser system transcends the limitations of fixed-head devices by featuring four interchangeable, magnetic spot sizes, ensuring optimal energy density across every body contour.



✅13×28mm and 13×24mm:

Designed for large treatment areas such as the back, chest, and legs. These large spot sizes significantly reduce treatment times, enabling practitioners to increase patient throughput and maximize daily revenue while maintaining consistent energy delivery.


✅13×13mm:

An ideal "all-rounder" for medium-sized areas like the bikini line, underarms, and neck. It strikes a perfect balance between treatment speed and maneuverability, ensuring a snug fit even on curved body contours.


✅Φ6mm:

An essential specialized tool for treating delicate areas that are difficult to reach with standard lasers-including the ears, the area between the eyebrows, the upper lip, and even the contours of the nose. This specialized probe ensures safety and precision when treating small, sensitive areas.

5022202b56c14b5786718461e672ed8e










Intelligent Hair Analysis



Features a built-in hair detector that displays static, magnified images of the treatment area in real-time on a 15.6-inch high-definition Android screen, enabling the operator to clearly observe hair condition and ensure no areas are missed during treatment.

Comprehensive and efficient hair reduction



One device can permanently reduce hair on various parts of your body, eliminating the need to purchase separate devices for different areas. This significantly reduces your purchase costs and saves space.

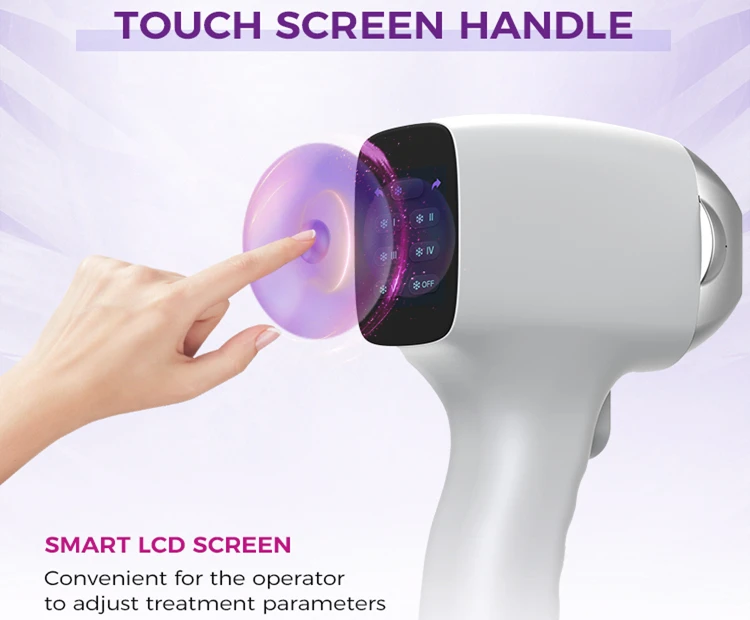

Intelligent switching modes to target hair removal for different areas

Smart Android OS & 15.6-inch HD Interface: Minimal Training, Maximum Results



Our diode hair removal device features a 15.6-inch Android HD screen, and offers options for skin tone, skin type, hair removal area, and energy adjustment parameters, allowing operators to easily adjust treatment parameters based on the customer's condition during the treatment, ensuring optimal results.



Intelligent switching modes to target hair removal for different areas



You can switch treatment areas (cheeks, arms, thighs, bikini line, armpits) by tapping the screen for more precise and targeted hair removal, resulting in more complete and effective hair removal.

This intelligent mode selection is especially user-friendly for a diode laser hair removal machine in Canada, where seasonal use cases vary.











Specification



Laser Laser Wavelength

808nm

755nm+808nm+1064nm

755nm+808nm+940nm+1064nm

Laser handle power

1800W Optional

2000W Fixed Light Spot

3000W Fixed Light Spot

Laser Stack

FL Laser Stacks with FAC

Spot size

13*28mm 13*24mm 13*13mm Ф6mm

Max Handle Power

3000W

Laser power supply

6000W

Energy Density

38J/cm²

Pulse Duration

3-100ms adjustable

Operation Interface

15.6 screen

Pulse Frequency

1-10Hz

Cooling system

Water+Radiator+Fans+TEC

Power Supply

AC 110-220V 50/60Hz













What effect are you expecting?



Our diode laser hair removal machine uses a coherent laser bar from the USA as its working head and achieves different spot sizes through FAC (Focused Acoustic Coherence), allowing for the removal of hair from various parts of the body, ensuring the diode laser hair removal machine in USA meets high-performance and safety standards.



  • Effectively removes hair from areas with coarser hair, such as the chest, back, and thighs.
  • Also effectively removes hair from the upper lip and chin.
  • Can also remove hair from areas such as the ears, nose, eyebrows, and fingers.



Our hair removal machine uses unique integrated laser technology to remove hair of various colors and textures, and is equipped with a hair detection function, allowing users to clearly see the treatment results.

Hair removal before and after photos














Leading Diode Laser Manufacturer: Reliable OEM/ODM Solutions for Global Brands




As a professional manufacturer, we are a trusted diode laser hair removal machines South Africa supplier, offering wholesale and private-label solutions.

Machine Improvements And Upgrades
Machine improvements and upgrades
Product Casing Display
Product casing display
Our Company Appearance
our company appearance







FAQ

Q: Will you provide marketing materials to help us promote our products?

A: Yes, we will provide materials such as brochures, pictures and videos. And we can tailor marketing strategies for the diode laser hair removal machine in the UK market or the medical aesthetics markets of other countries to help you promote our products to customers.

Q: Do you provide customization services?

A: Of course, we provide OEM/ODM services, allowing you to customize the product's logo, etc. according to your own brand design.

Q: If I want to buy diode laser hair removal machine, how can I pay?

A: We support bank transfer (TT), Western Union, MoneyGram, PayPal and other secure payment methods.

     For inquiries about the diode laser hair removal price in the Philippines and other regions, we offer competitive factory-direct pricing with customizable OEM/ODM services.
