A single device encompassing the complete facial treatment process

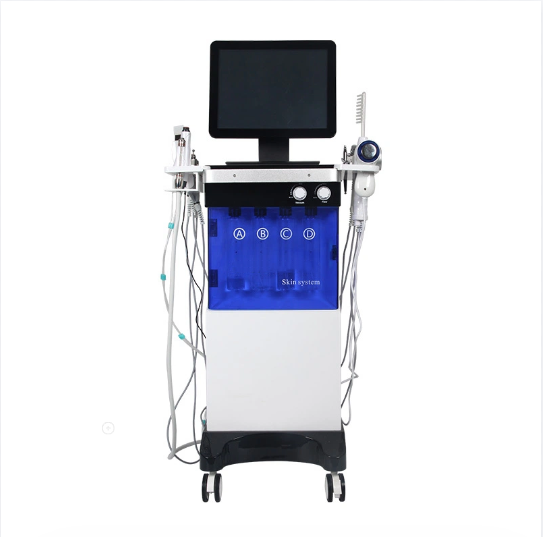

The HYDRA SPA PRO (Model SPA909F) is a professional-grade hydro-dermabrasion and oxygen infusion system that integrates a comprehensive facial treatment workflow into a single, mobile unit. It features 14 dedicated handpiece ports covering 12 types of treatment technologies:
Vacuum-assisted hydro-dermabrasion, diamond microdermabrasion, ultrasonic skin scrubbing, oxygen infusion, RF (Radio Frequency), microcurrent, LED light therapy, high-frequency ozone, and cold therapy.
A full treatment session can be completed from start to finish without the need to switch between different devices.
It is designed for clinics, medical aesthetic centers, and beauty salons that require consistent treatment results across multiple practitioners, and is available to global distributors and private-label clients via OEM/ODM services.
How the System Works?
While many multi-functional devices simply mount various handpieces onto a single machine, this platform is designed for a specific, sequential treatment workflow.
1️⃣Cleansing
A 90 kPa vacuum combined with a spiral water jet extracts sebum plugs and pore impurities, while diamond abrasion tips and an ultrasonic spatula simultaneously remove accumulated dead skin cells.
2️⃣Infusion
An oxygen spray gun and 1 MHz ultrasound deliver antioxidants and hyaluronic acid beneath the skin's surface-performed in a single pass rather than as separate steps.
3️⃣Lifting
5 MHz tri-polar RF heats the dermis to stimulate collagen activity, while microcurrents improve muscle tone and lymphatic circulation.
4️⃣Targeted Treatment
Red and blue LED light therapy and high-frequency ozone address specific concerns, such as anti-aging, clogged pores, or post-acne repair.
5️⃣Restoration
A cooling probe tightens pores and soothes redness, allowing clients to resume normal activities immediately with zero downtime.
Each handpiece features a dedicated port and remains connected throughout the session. Practitioners can transition seamlessly from one step to the next without unplugging cables or interrupting the treatment. Four solution bottles hold all the necessary serums for the full protocol, and treatment parameters-set on a 15-inch touchscreen-remain constant throughout the procedure, ensuring consistent intensity for the same treatment plan regardless of the operator.
A good outcome once is technique. A good outcome every time is the machine.
Product Functions
Functions of Hydra Dermabrasion Facial Beauty Equipment
- Reduce age spots and oily skin
- Rejuvenate sun damaged skin
- Improve overall skin health
- Minimize blotchy skin coloring
- Remove blackheads and whiteheads
Advantages
Deep cleansing, gentle and non-irritating
Use water oxygen infusion and vacuum suction to effectively remove pore dirt, blackheads and dead skin. Suitable for all skin types (including sensitive skin).
Promote blood circulation and metabolism
RF technology generates gentle heat to stimulate blood circulation, accelerate cell renewal and detoxification, and make the skin healthier.
Improve firmness and elasticity
RF energy activates collagen regeneration, improves skin firmness, and reduces fine lines and sagging.
Promote nutrient absorption
After cleansing, RF and oxygen jets help active ingredients penetrate deeper into the skin, thereby enhancing the treatment effect.
Comfortable, non-invasive, no downtime
The entire treatment process is gentle, safe and painless, and patients can resume their daily activities immediately after treatment.
Instant hydration and nourishment
Infuse nutrient-rich serum while cleansing to enhance skin moisture, making the skin soft, plump and radiant.
From Deep Cleansing to Post-Care: The Complete Handle Lineup
Newangie's hydra-facial cleansing system features 14 dedicated handpiece ports that remain permanently connected, eliminating the need to plug/unplug cables or swap tools during treatment.
A single 15-inch touchscreen allows for the seamless execution of a continuous treatment sequence, including deep cleansing, needle-free infusion, RF and microcurrent lifting, photon therapy, and post-procedure cryotherapy.
Specialized ultrasonic probes and photon brushes are included for targeted care of the eye and facial areas. The standard package comes with 8 hydra-dermabrasion tips and 9 diamond dermabrasion tips.
| Interface | Handpiece | Core Technical Principles | Primary Indications |
| Socket 1 | Photon Brush - Red Light | Red LED light therapy (photobiomodulation) targeting the dermis | Anti-aging, collagen stimulation, brightening dull skin |
| Socket 2 | Photon Brush - Blue Light | Blue LED light therapy targeting cutibacterium acnes | Acne-prone skin, oil control, antibacterial |
| Socket 3 | Bio Photoelectric Handle I | Microcurrent + photo-electrical combination for facial treatment | Facial lifting, contour firming |
| Socket 4 | Bio Photoelectric Handle II | Same as above; secondary probe specification | Treatment for large areas |
| Socket 5 | High Frequency Handle | High-frequency current for ozone generation; includes 4 glass electrodes | Sterilization & anti-inflammation, post-acne repair |
| Socket 6 | Ice Hammer | Semiconductor cooling/heating with temperature control | Post-procedure soothing, pore tightening, product infusion |
| Socket 7 | Spray Mist Gun | High-pressure airflow for serum atomization and needle-free infusion | Hydration, nutrient delivery, barrier repair |
| Socket 8 | BIO HANDLE | Dual-sphere microcurrent simulating human bioelectricity | Eye area lifting, muscle activation, lymphatic drainage |
| Socket 9 | Three Polar RF | 5MHz tri-polar RF for dermal heating | Firming & lifting, collagen remodeling, fine line reduction |
| Socket 10 | Ultrasound Handle - Eyes | 1MHz ultrasound (small probe) | Fine lines around the eyes, dark circles, serum infusion |
| Socket 11 | Ultrasound Handle - Face | 1MHz ultrasound (large probe) | Facial infusion, absorption enhancement, keratin softening |
| Socket 12 | Diamond Dermabrasion | Vacuum suction + physical diamond abrasion; includes 9 abrasive tips | Exfoliation, acne marks, rough skin texture |
| Socket 13 | Hydra Dermabrasion | 90kPa vacuum suction + spiral water flow; includes 8 suction tips | Deep cleansing, blackhead removal, pore purification |
| Socket 14 | Skin Scrubber | Ultrasonic spatula with high-frequency oscillation | Keratin removal, pore clearing, infusion & extraction |
Understanding the Function in Principles
Product Parameters
| Vacuum | 90 Kpa |
| Power | 300 W |
| Max output | 250 VA |
| Ultrasound | 1 MHz |
| RF | 5 MHz |
| High frequency | 50Hz–60Hz |
| Voltage | 100–240 VAC, 50Hz/60Hz |
| Screen | 15 inch Touch screen |
Clients see remarkable results immediately after the treatment
While most facial treatment devices excel at only a single function, this platform delivers a comprehensive care regimen in just one session:
cleansing, deep cleansing, nutrient infusion, lifting and firming, and soothing.
With each step seamlessly integrated-eliminating the need to switch devices-the skin emerges not only cleaner but also hydrated, balanced, and visibly radiant. It is precisely this striking difference that compels first-time clients to book follow-up appointments.
Improvement in Skin Firmness and Fine Lines
This is the only effect that is not immediately apparent; therefore, it is important to manage client expectations accordingly.
5MHz Tripolar RF stimulates collagen activity by heating the dermis, while microcurrent technology targets facial muscle tone and lymphatic drainage. Both modalities offer cumulative benefits: although the skin may feel firmer after the initial session, significant improvements in fine lines and facial contours emerge gradually over the course of the full treatment regimen, with continued enhancement observed for weeks after the final session.
This treatment is most effective for mild to early-stage skin laxity-such as superficial fine lines, a blurred jawline, and loss of elasticity in the cheeks, chin, and neck areas. For more severe cases of laxity, alternative treatments are recommended.
Treatment Progression and Results
After the first session
Pores are cleaner, skin texture is refined, moisture is replenished, and the complexion is visibly brightened. No downtime required.
After two to three sessions
Clogged pores and blackheads are reduced, skin tone becomes more even, acne-prone skin is soothed, and the skin begins to feel firmer.
After the full course of treatment
Skin texture and clarity continue to improve; the benefits of increased firmness and the softening of fine lines persist for weeks after the final session.
Ongoing maintenance
Most clinics schedule monthly maintenance sessions to sustain and reinforce the results.
Post-Procedure and Sensitive Skin Care
With its low-energy settings, this platform is suitable for treatment scenarios that are inaccessible to most other devices.
Operating in a non-ablative mode, it effectively supports recovery following chemical peels, laser treatments, or microneedling: gentle infusion replenishes moisture in the skin barrier, a cooling effect helps alleviate redness, and LED light therapy soothes the treated area-all without the need for epidermal abrasion.
This offers significant value to clinics. The same device can handle both entry-level facials and post-procedure care, allowing it to support the client throughout their entire treatment journey and preventing equipment downtime between sessions.
Contraindications
Our facial care device can protect our skin gently and effectively, but it is not suitable for everyone.
The following groups need to pay special attention:
Patients with heart disease, pacemakers, and hypertension.
Patients with acute inflammation, deep vein thrombosis, goiter, asthma, cancer, etc.
People with ruptured blood vessels, bleeding, and wounds that are bleeding.
Pregnant women.
People who have undergone plastic surgery and have fillers in their body.
People with metal materials in their bodies (including metal teeth).
People with skin inflammation and body swelling.
People with abnormal immune system function.
People with numbness and no reaction to heat.
